This Portfolio Site

View on GitHub cloudwithsarah.com

Overview

A static portfolio website showcasing my experience, skills, and projects. The site is built with vanilla HTML, CSS, and JavaScript, deployed on AWS using infrastructure-as-code principles with CDK. It demonstrates modern cloud architecture patterns including secure content delivery, automated deployments, and proper SSL/TLS certificate management.

Architecture

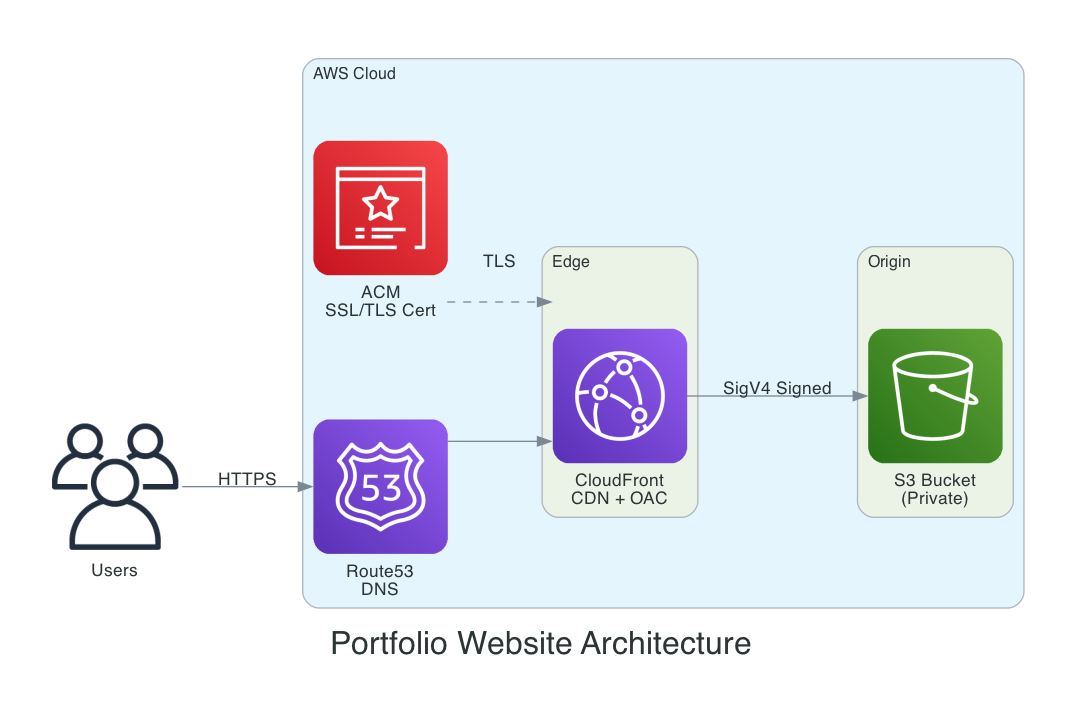

Portfolio site architecture diagram showing Route53, CloudFront with OAC, and private S3 bucket

The architecture follows AWS best practices for static website hosting with secure content delivery:

  • User Request Flow: DNS resolution through Route53, HTTPS termination at CloudFront with ACM certificate, and secure origin fetch from S3 via Origin Access Control (OAC)
  • Security: S3 bucket is private with Block Public Access enabled; CloudFront uses OAC with SigV4 signed requests to access content

CI/CD Pipeline

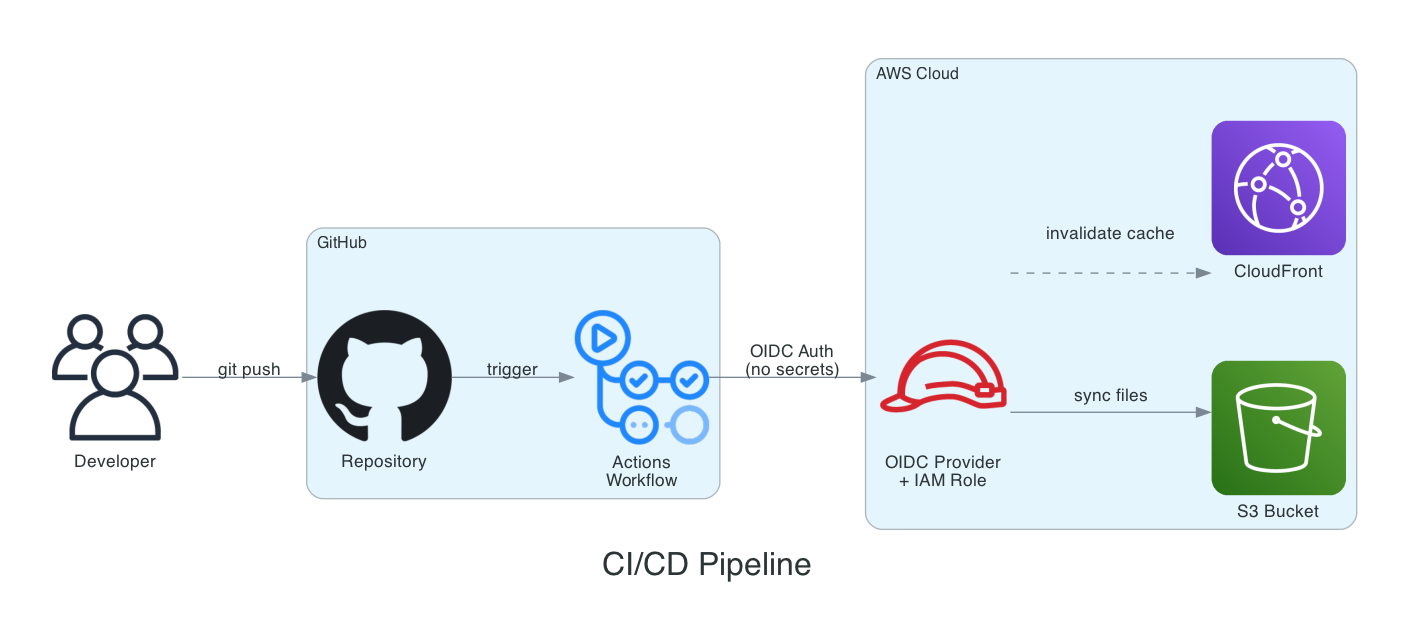

CI/CD pipeline showing GitHub Actions with OIDC authentication deploying to S3 and invalidating CloudFront

Fully automated deployment pipeline:

  • Deployment Flow: Git push triggers GitHub Actions, which authenticates via OIDC (no long-lived credentials) to deploy files to S3 and invalidate the CloudFront cache
  • Security: OIDC federation eliminates the need for stored AWS credentials; IAM role has scoped permissions for S3 and CloudFront operations only

Architecture Decisions

OAC over OAI

Decision: Use Origin Access Control instead of Origin Access Identity

Rationale: OAI is deprecated by AWS. OAC provides better security with support for all S3 features including SSE-KMS encryption, and works with all AWS regions. It also supports AWS Signature Version 4, which is required for newer regions.

CDK over CloudFormation/Console

Decision: Use AWS CDK (TypeScript) for infrastructure management

Rationale: CDK provides type safety, IDE autocomplete, and the ability to use programming constructs like loops and conditionals. Infrastructure changes are version controlled and reviewable. The same patterns can be reused across multiple projects.

CloudFront over Direct S3

Decision: Serve content through CloudFront rather than S3 website hosting

Rationale: CloudFront enables HTTPS with custom domain (S3 website endpoints don't support HTTPS), provides global edge caching for better performance, and allows the S3 bucket to remain private. Cache invalidation ensures updates are immediately visible.

OIDC over IAM Access Keys

Decision: Use OpenID Connect for GitHub Actions authentication

Rationale: No long-lived credentials to manage or rotate. Tokens are short-lived and scoped to specific workflows. This follows AWS security best practices and eliminates the risk of leaked access keys.

Tech Stack

S3

Static file storage with versioning enabled

CloudFront

Global CDN with edge caching

Route53

DNS management and routing

ACM

SSL/TLS certificate management

CDK

Infrastructure as code (TypeScript)

GitHub Actions

CI/CD pipeline automation

CI/CD Pipeline

The deployment pipeline is fully automated using GitHub Actions:

  1. Trigger: Push to main branch or manual workflow dispatch
  2. Authentication: OIDC federation with AWS (no stored credentials)
  3. Build: Any preprocessing (currently minimal for static site)
  4. Deploy: Sync files to S3 bucket with appropriate cache headers
  5. Invalidate: Create CloudFront invalidation for immediate updates

Average deployment time is under 2 minutes from push to live.

Related Blog Post

Technical deep dive inspired by a misconfiguration in this site's redirect setup and the modern solution:

2 Buckets 1 Website: How CloudFront Changes AWS Static Site Redirects →

Source Code

Explore the full codebase, including CDK infrastructure and CI/CD pipeline:

lifeunsubscribe/resume-website on GitHub →
